Sienci Labs

Mill One

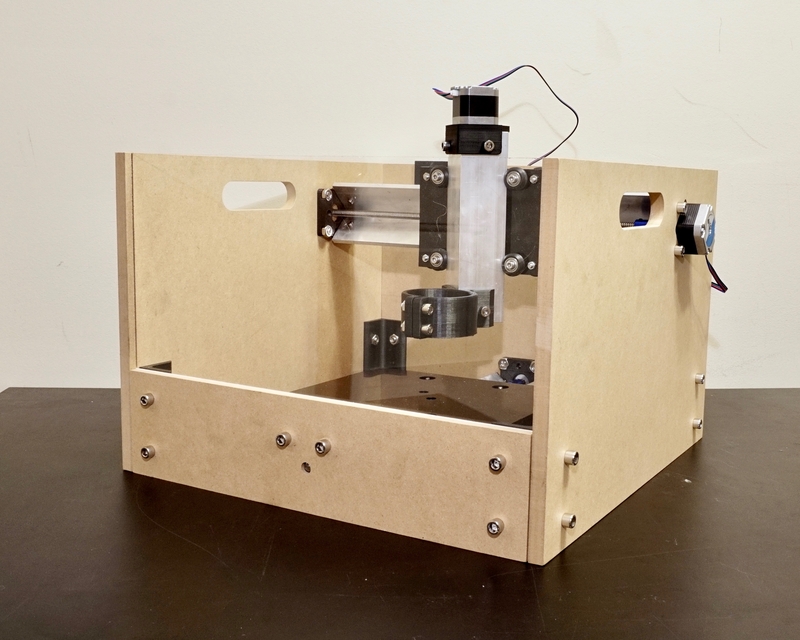

The Sienci Mill One is a high performance, 3 axis desktop milling machine that turns your ideas into real objects in an easy to use, affordable package that focuses on simple design and user experience.

Specifications:

Working Area: approximately 235mm x 185mm x 100mm (9 ¼" x 7 ¼" x 4″)
Machine Volume: approximately 430mm x 430mm x 300mm (17" x 17" x 11 â…ž")
Mechanical resolution: ±0.1mm
Max Travel Speed: 1200mm/min at â…› microstepping (arbitrary cap)
Commands to Controller: G-code
Driver system: CNC V3.0 HCARDU0086 Arduino Shield on Arduino Uno with Pololu A4988 stepper motor drivers and GRBL firmware
Software Compatibility: Universal GCode Sender, Kiri:Moto, Fusion 360 (with Universal GCode Sender plugin), and any other g-code sending software (some 3D printer senders work)
Interface: USB
Power supply: External 120V/220V, 50/60Hz AC to 24VDC 5A
Power consumption: 110W (max)
Run Speed: Recommended speeds are dependent on cutter choice and material hardness. Listed are some of the typical feed rates and depths of cut we use for our machine with a 2 flute â…›" end mill.

Wood:
Feed rate: 800 to 1200mm/min
Depth of cut: 1.5 to 2 mm

6061 Aluminum:
Feed rate: 800 to 1200mm/min
Depth of cut: 0.08 to 0.1 mm
Coolant: water or rubbing alcohol

Acrylic:
Feed rate: 500 to 1000mm/min
Depth of cut: 1 to 1.5 mm

PVC:
Feed rate: 800 to 1200
Depth of cut: 1.5mm to 2mm

Material Diversity: metals softer than aluminum, woods, plastics, foams, printed circuit boards, leather, and more!
Extras: The Mill One uses open source hardware and firmware, letting users build and modify their machines. Not only that, nearly all of our components are standard and easy to source or 3D printable, making replacing parts easy.
