Gravograph

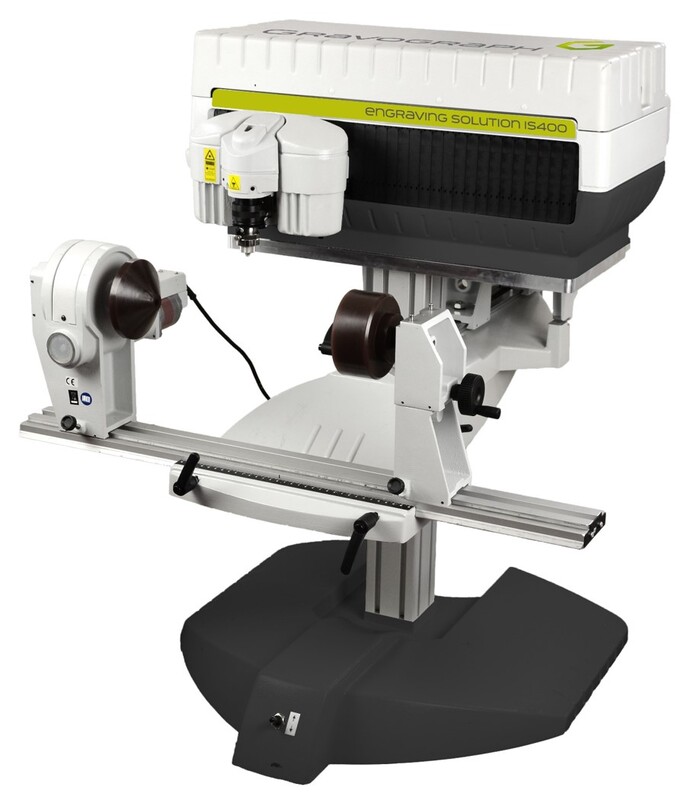

IS400 Volume

This progressive and professional machine is perfect for:
- machine labels
- front panels
- marking parts
- industrial signage
- 3D engraving
- stainless steel engraving
- plastic and metal engraving

Engraving area 305 x 210 mm
Flatness tolerance 0.2 mm
Max. clearance in X axis between columns 370 mm
Max. clearance in Y axis unlimited
Spindle travel 40 mm
Spindle travel at bottom of vice 120 mm
Spindle travel with clamping table 33 mm
Tool diameter 4.36 mm
Rotation speed 11 to 20 000 rpm
Direct current mechanical power 75 W

Is4000
