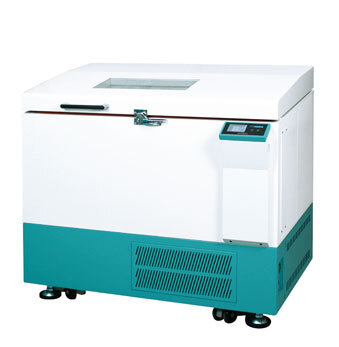

Incubated Shakers (Floor)

Performance

Temperature range:
- Ambient +5°C to 80 °C for ISF-7100 / 7200
- Ambient -20°C (Min. 4) to 80°C for ISF-7100R / 7200R
Competitive high shaking speed up to 500 rpm.
- Speed range: 30 to 500 rpm.
Orbital shaking motion in various diameter.
- 25.4mm for ISF-7100/R
- 50.8mm for ISF-7200/R
Microprocessor PID control.
Three point temperature calibration / Automatic tuning.
Wide speed range even with heavy workload.
- Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
Air-tight silicone door seal with lockable door for safe storage of samples.
Convenience

Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Easy sample monitoring and convenient sample loading.
- Clear observation of samples without affecting inner chamber’s environment thanks to the transparent top viewing window with bright LED lamps.
- The lid is inclined gently towards the front for easy observation of samples in the chamber.
- Gas spring lid supports providing smooth motion, soft opening and closing.
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Corrosion resistance stainless steel interior.
Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
Built-in RS-232 port and USB port for external control and data collection.
Sturdy foot caster, beneficial for easy mobility during installation or relocation.
