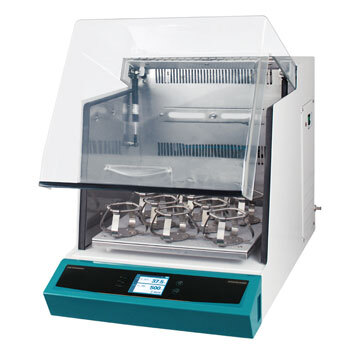

Incubated Shakers (Benchtop)

Performance

Temperature range:
- Ambient +5°C to 80°C for IST-3075 / 4075.
- Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
Competitive high shaking speed up to 500 rpm.
Orbital shaking motion in 19mm diameter.
Microprocessor PID control.
Three point temperature calibration / Automatic tuning.
Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
Air-tight silicone door seal to provide excellent temperature uniformity
Convenience

Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Wide sample monitoring and convenient sample loading.
- Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
- Gas spring lid supports providing smooth motion, soft opening and closing.
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Corrosion resistance stainless steel interior.
Built-in RS-232 port and USB port for external control and data collection.
Safety

Automatic run after power interruption.
Temperature and shaking speed deviation alarm.
Over-current protection, Stalled platform check.
Mechanical over-temperature protection device.
Environment-friendly CFC-free refrigerant. (for IST-3075R / 4075R)
Audible and visible open door alarms.
