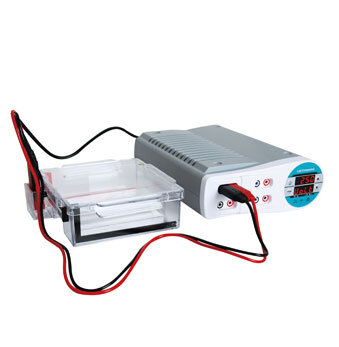

Electrophoresis Systems

Performance & Convenience

The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
Detachable electrode assembly allows for easy cleaning and maintenance.
Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
UV-transparent gel trays allow for viewing bands on the UV-transilluminator without removing gel tray.
Diverse-sized molded gel trays and casters for leak-free casting
- EP-5 : 82x81mm (1ea) and 82x58mm (2ea) gel trays with one comb position.
- EP-10 : 181x103mm (2ea) gel trays with max. four comb positions.
- EP-18 : 181x206mm (1ea) gel tray with max. six comb positions.
Double-sided combs are provided depending on each model.
- EP-5 : 1mm thick 27-and 40-well comb (1ea)
- EP-10, 18 : 1.5mm thick 20-and 31-well comb (2ea),
1mm thick 20-and 31-well comb (2ea),
1.5mm thick 16-and 20-well comb (2ea),
1mm thick 16-and 20-well comb (2ea),
1.5mm thick 25-and 34-well comb (2ea),
1mm thick 25-and 34-well comb (2ea)
31-well comb and 16-well comb for matching multichannel pipettes. Suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray.
Comb-setting grooves in gel trays or caster prevent sliding of combs.
Adjustable gel length.
Flat, uniformly thick gels are formed by the built-in level maker on the gel tray and level bubble on the gel caster.
